您現在的位置：首頁>>產品目錄>>三層復合玻纖增強聚丙烯（PFRP）管道技術說明
|
三層復合玻纖增強聚丙烯（PFRP）管道 |
 |
|
|
PFRP
管道標準
(參照德國工標準8077/8078)
軸承長度：5米（特殊長度另訂)
色澤 ：本色、灰色或紅色 |
|
|

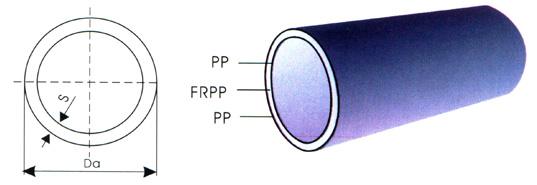

三層復合玻纖增強聚丙烯（PFRP）管道外層為PP，中層為FRPP，內層為PP，很巧妙地把FRPP夾在PP中間，這樣管道既保留了PP管道的光潔度和耐腐蝕性，又可很大程度上提高了中間FRPP的玻纖含量，使管道的剛性（環剛度）、拉伸強度，耐溫抗蠕變性都比單層的FRPP要好，是一種非常理想的玻纖增強聚丙烯管道。 |
|
Da
mm |
公稱壓力 |
PN2.5 |
PN3.2 |
PN4 |
PN6 |
PN10 |
PN16 |
|
S
mm |
重量
kg/m |
S
mm |
重量
kg/m |
S
mm |
重量
kg/m |
S
mm |
重量
kg/m |
S
mm |
重量
kg/m |
S
mm |
重量
kg/m |
S
mm |
重量
kg/m |
S
mm |
重量
kg/m |
|
20 |
|
|
|
|
|
|
|
|
|
|
1.8 |
0.12 |
2.5 |
0.16 |
2.8 |
0.18 |
|
25 |
|
|
|
|
|
|
|
|
|
|
1.8 |
0.15 |
27.7 |
0.23 |
3.5 |
0.27 |
|
32 |
|
|
|
|
|
|
|
|
|
|
1.9 |
0.22 |
3.0 |
0.32 |
4.5 |
0.45 |
|
40 |
|
|
|
|
|
|
|
|
1.8 |
0.26 |
2.3 |
0.32 |
3.7 |
0.49 |
5.6 |
0.70 |
|
50 |
|
|
|
|
|
|
1.8 |
0.324 |
2.0 |
0.36 |
2.9 |
0.50 |
4.6 |
0.77 |
6.9 |
1.08 |
|
63 |
|
|
|
|
1.8 |
0.42 |
2.0 |
0.47 |
2.5 |
0.56 |
3.6 |
0.79 |
5.8 |
1.20 |
8.7 |
1.68 |
|
75 |
|
|
|
|
1.9 |
0.53 |
2.4 |
0.66 |
2.9 |
0.78 |
4.3 |
1.12 |
6.9 |
1.68 |
10.4 |
2.40 |
|
90 |
|
|
|
|
2.2 |
0.72 |
2.8 |
0.91 |
3.5 |
1.12 |
5.1 |
1.56 |
8.2 |
2.40 |
12.5 |
3.48 |
|
110 |
|
|
|
|
2.7 |
1.08 |
3.5 |
1.44 |
4.3 |
1.68 |
6.3 |
2.40 |
10.0 |
3.60 |
15.2 |
5.16 |
|
125 |
|
|
|
|
3.1 |
1.44 |
3.9 |
1.80 |
4.9 |
2.16 |
7.1 |
3.12 |
11.4 |
4.68 |
|
|
|
140 |
|
|
|
|
3.5 |
1.80 |
4.4 |
2.16 |
5.4 |
2.64 |
8.0 |
3.84 |
12.8 |
5.88 |
|
|
|
160 |
|
|
|
|
3.9 |
2.28 |
5.0 |
2.88 |
6.2 |
3.48 |
9.1 |
5.04 |
14.6 |
7.68 |
|
|
|
180 |
|
|
|
|
4.4 |
2.88 |
5.6 |
3.60 |
7.0 |
4.44 |
10.2 |
6.24 |
16.4 |
9.72 |
|
|
|
200 |
|
|
|
|
4.9 |
3.48 |
6.2 |
4.44 |
7.7 |
5.4 |
11.4 |
7.80 |
18.2 |
11.8 |
|
|
|
225 |
|
|
5.0 |
4.04 |
5.5 |
4.44 |
7.0 |
5.52 |
8.7 |
6.8 |
12.8 |
9.84 |
20.5 |
15.1 |
|
|
|
250 |
|
|
5.0 |
4.52 |
6.1 |
5.52 |
7.8 |
6.84 |
9.7 |
8.5 |
14.2 |
12.12 |
22.8 |
18.6 |
|
|
|
280 |
|
|
5.0 |
4.96 |
6.9 |
6.84 |
8.7 |
8.64 |
10.8 |
10.6 |
15.9 |
15.12 |
25.5 |
23.4 |
|
|
|
315 |
|
|
6.0 |
6.73 |
7.7 |
8.64 |
9.8 |
10.9 |
12.2 |
13.4 |
17.9 |
19.2 |
28.7 |
29.5 |
|
|
|
355 |
|
|
6.0 |
7.52 |
8.7 |
10.9 |
11.1 |
13.4 |
13.7 |
16.9 |
20.1 |
24.4 |
32.3 |
37.4 |
|
|
|
400 |
6.0 |
8.64 |
8.0 |
11.64 |
9.8 |
13.9 |
12.4 |
17.5 |
15.4 |
21.5 |
22.7 |
30.8 |
36.4 |
47.6 |
|
|
|
450 |
6.0 |
9.84 |
8.0 |
13.2 |
11.0 |
17.6 |
14.0 |
22.0 |
17.4 |
27 |
25.5 |
39.0 |
41.0 |
60.2 |
|
|
|
500 |
8.0 |
13.56 |
10.0 |
18.12 |
12.2 |
21.6 |
15.5 |
27.2 |
19.3 |
33.6 |
28.3 |
48.2 |
45.5 |
74.4 |
|
|
|
560 |
10.0 |
19.92 |
12 |
23.75 |
13.7 |
27.12 |
17.4 |
34.0 |
21.6 |
42 |
31.7 |
60.36 |
|
|
|
|
|
630 |
10.0 |
22.56 |
12 |
26.74 |
15.4 |
34.32 |
19.6 |
43.3 |
24.3 |
53.1 |
35.7 |
76.44 |
|
|
|
|
|
710 |
12.0 |
30.36 |
15 |
37.67 |
17.4 |
43.7 |
22.1 |
55.0 |
27.4 |
67.5 |
40.2 |
96.9 |
|
|
|
|
|
800 |
12.0 |
34.32 |
15 |
42.32 |
19.6 |
55.3 |
24.9 |
69.70 |
30.8 |
85.4 |
|
|
|
|
|
|
|
900 |
15.0 |
48.24 |
18 |
57.03 |
22.0 |
69.7 |
28.0 |
88.0 |
34.7 |
108.2 |
|
|
|
|
|
|
|
1000 |
15.0 |
53.64 |
18 |
65.47 |
24.4 |
86.04 |
31.1 |
108.8 |
38.5 |
133.4 |
|
|
|
|
|
|
|
|
|
